产品目录

风选+重力清选机 Air separation + gravity cleaner

风选+重力清选机 Air separation + gravity cleaner

关键词:

咨询电话:

熊经理 18168863192

周经理 13665101927

产品介绍

风选+重力清选机 Air separation + gravity cleaner

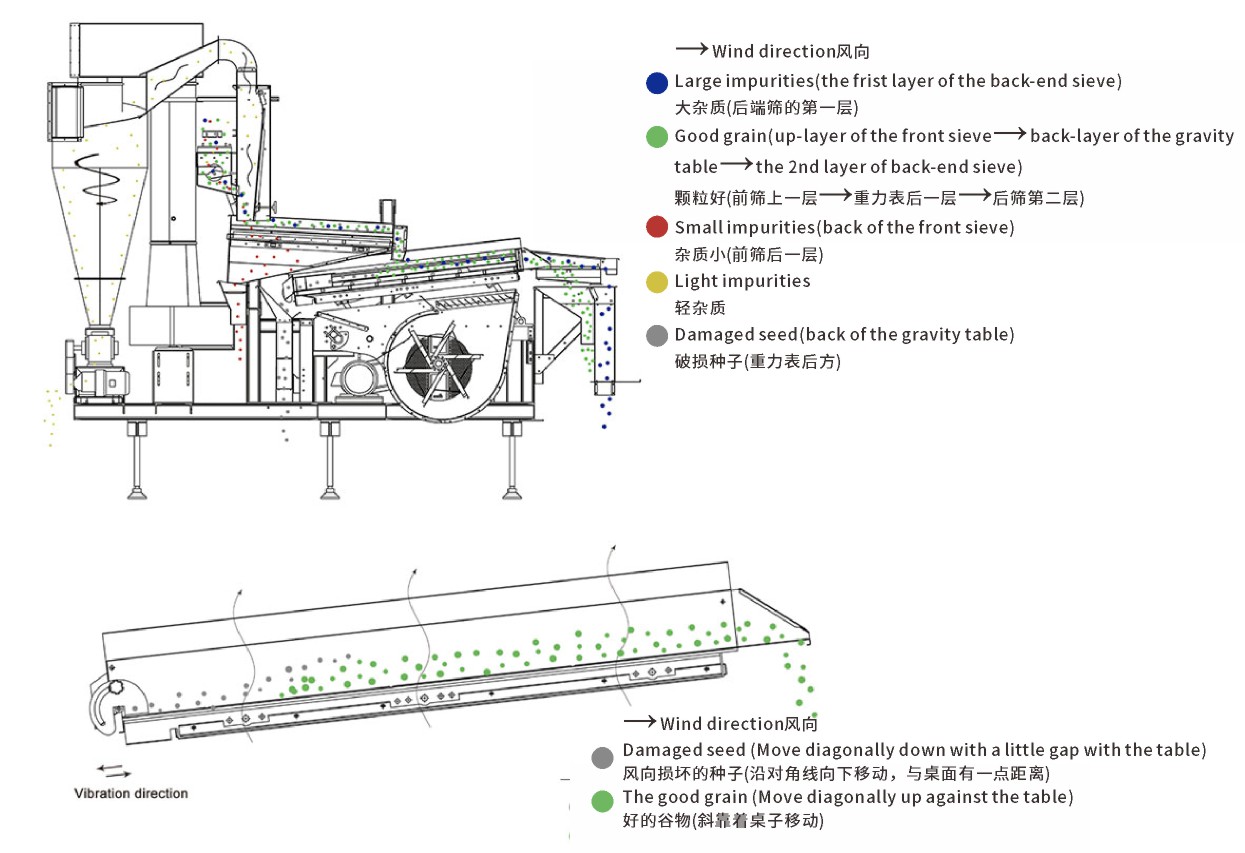

该机由提升机、垂直风筛、旋风除尘系统、振动分级筛等组成。可去除灰尘、糠、壳等轻杂质。它还可以去除枯萎的种子、发芽的种子、被虫害的种子、腐烂的种子、变质的种子、发霉的种子、不能存活的种子、有病的黑色粉末的种子。大、小杂质去除后,成品可分为最佳、中、小颗粒。


特点:

1、经过风选、筛选,减轻重力选的工作负荷,进一步提高产量、质量。

2、加工小麦、水稻、玉米、大豆、高粱等商品粮,生产率可达20t/h,可去除粮食中98%以上的轻杂质。

3、设有旋风除尘或布袋除尘,且无大量粉尘泄漏,环保卫生。

4、进料方式:电梯、螺旋输送机、带式输送机,(任选)Advantages(优势)

Model

型号

Purity (%)

净度

Screen surface size (mm)

   筛面尺寸

Gravity   vibration frequency

(Times/ minute)

重力振动频率

Gravity vibration amplitude(mm)

重力振幅

Cleanliness

净度(%)

Power

(kw)

功率

Capacity

(t/h)

产量

Weight

(t)

自重量

Overall size

L×W×H(mm)

外型尺寸

5XSC-15

≥98

1700×1600

375

20

≥98

12.0

≥15

≥2.2

4450×2400×3740


The machine is composed of elevator, vertical air screen, cyclone dust removal system, vibration classification screen, etc. It can remove dust, bran, shell and other light impurities. It can also remove the withered seeds, germinated seeds, infested seeds, rotten seeds, deteriorated seeds, moldy seeds, non viable seeds and diseased black powder seeds. After the removal of large and small impurities, the finished product can be divided into the best, medium and small particles.


Features:

1. After air cleaner and screening, the working load of gravity separation is reduced and the output and quality are further improved.

2. It can process wheat, rice, corn, soybean, sorghum and other commercial grains with a productivity of 20t / h, and can remove more

3. It is equipped with cyclone dedusting or bag dedusting, and there is no large amount of dust leakage, environmental protection and health.

4. Feeding mode: elevator, screw conveyor, belt conveyor, (optional)一。该机可代替重力分离器,减轻重力工作台的负荷,进一步提高产量。
